Phototherapy
Treats neonatal jaundice with high-intensity blue LEDs in the 430–490 nm range.
Overview
Treats neonatal jaundice. High-intensity blue LEDs in the 430–490 nm range, with intensity control, floor-standing on castors, adjustable height and an international power source.
Specifications
Transcribed from the Simbona product catalogue.
| Light source | Blue LEDs |
|---|---|
| Wavelength | 450 ± 20 nm |
| Operating life | 40,000–50,000 hours |
| Height adjustment | 140–175 cm |
| Dimensions (L × W × H) | 50 cm × 55 cm × 25 cm |
| Overhead light box | 18 blue LEDs and 3 white LEDs for observation |
| Effective surface area | 60 × 40 cm |
| Spectral irradiance | Low intensity 30 µW/cm²; high intensity 60 µW/cm² |
| Intensity control — low | 30 µW/cm²/nm ± 10 |
|---|---|
| Intensity control — high | 60 µW/cm²/nm ± 10 |
| Temperature | 18–30 °C |
|---|---|
| Humidity | 15–80%, non-condensing |
| Barometric pressure | 70–106 kPa |
| Air flow velocity | < 0.3 m/s |
| Temperature | −20–60 °C |
|---|---|
| Humidity | 15–80%, non-condensing |
| Barometric pressure | 50–106 kPa |
| Input voltage | 100–240 VAC (50/60 Hz) |
|---|---|
| Current input | 5–7 A |
| Particular standard | IEC 60601-2-50 (infant phototherapy) |
|---|---|
| Standards applied | IEC 60601-1:2005; IEC 60601-2-50:2009; IEC 60601-1-2:2007; ISO 9001:2007; EFDA registration guideline; ESA; ECAE conformity and safety test |
Video
In the video

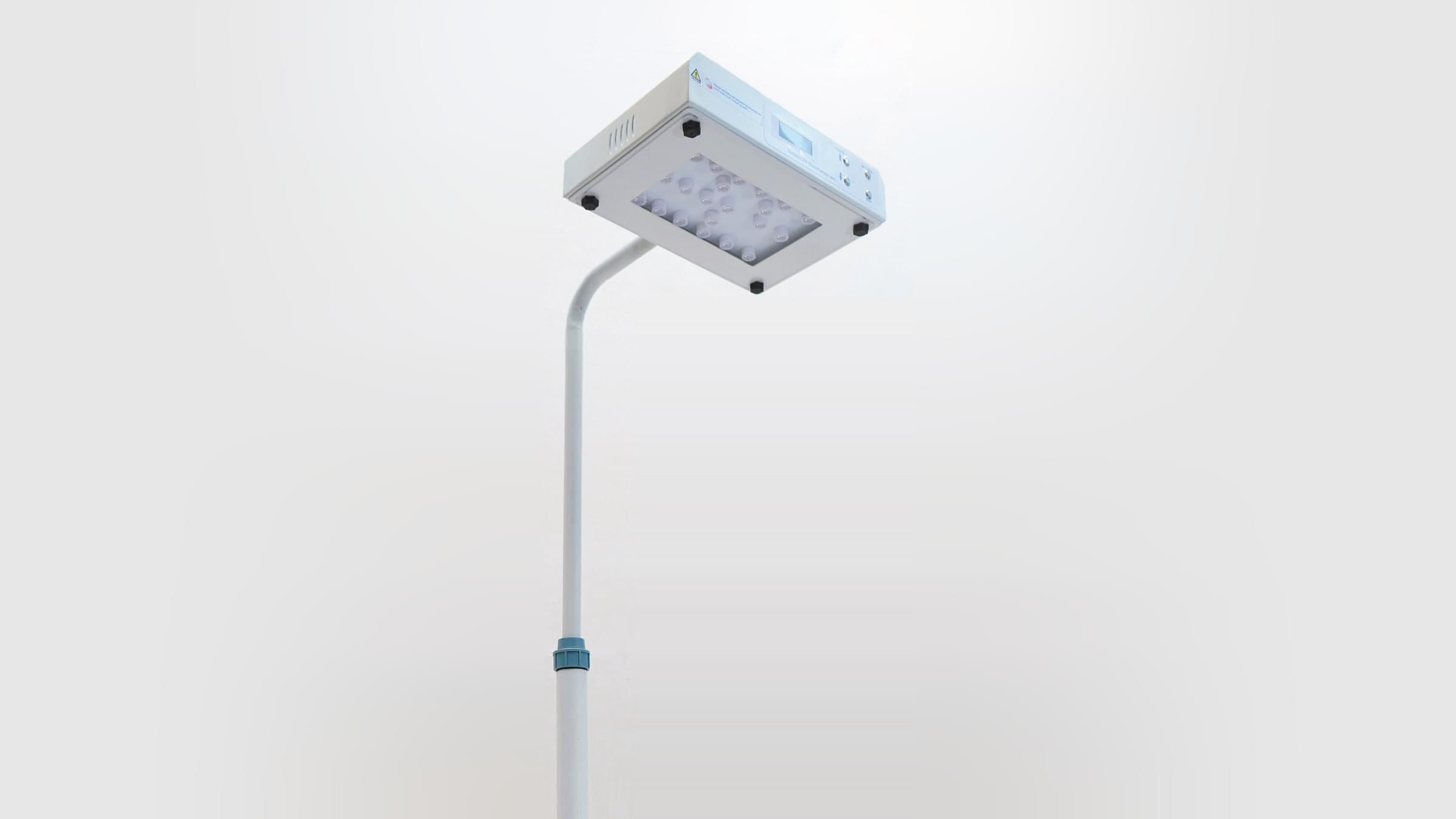

A short look at the LED Phototherapy Unit: overhead LED heads and height-adjustable stand.
Regulatory status
Bodies & standards
May 2025: Simbona's products received EFDA market authorisation and registration.
EFDA
Ethiopian Food & Drug Authority
ECAE
Ethiopian Conformity Assessment Enterprise
IEC
International Electrotechnical Commission
IES
Institute of Ethiopian Standards
ETA
Ethiopian Technology Authority
Directives
Standards applied
This device
